Orient Co
|
Outdoors electric all-closed road sweeper
| Payment Terms: | T/T |
| Place of Origin: | Jiangsu, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
1. 48V300A battery
2. using completely closed cab to avoid the weather and noise
3.Liquid crystal display systems
4.Drive system on the home

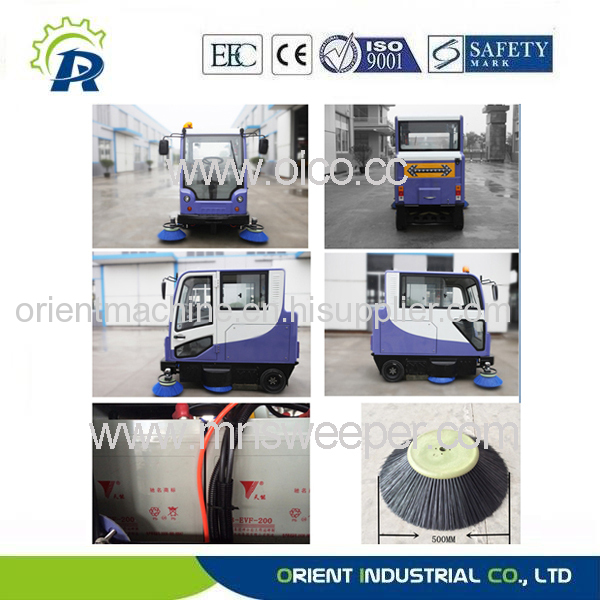

Outdoors electric all-closed road sweeper
New all-closed sweeper is added the fully closed cab on the basis of the original 1550 and 1750, emitting extremely high levels of mist spray to reduce dust when cleaning, so that it applies more broadly.
I. CHARACTERISTICS:
1. It adopts 48V300A battery packs used as the driving force of continuous use longer.
2. using completely closed cab to avoid the weather and noise interference
3. It takes the humanization design concept for the user to provide a safe and comfortable
operating environment
4. The use of advanced flat-panel-style filter, filter a larger, more powerful vacuum.
5. Drive system on the home, increasing the volume of trash.
6. Liquid crystal display systems, vehicle status at a glance.
II. PARAMETERS:
No. | Item Name | Unit | OM-MN-E800LC |
1 | Cleaning efficiency | M2/h | 12000 |
2 | Sweep width | mm | 1850 |
3 | Max climbing capacity | % | 25 |

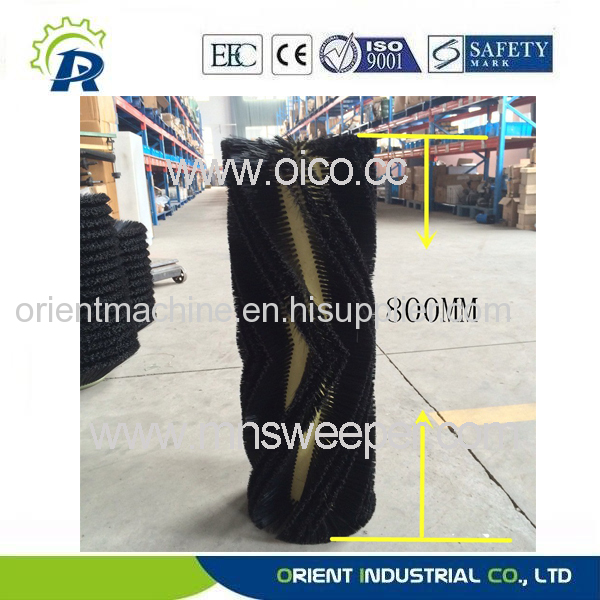

4 | Length of main brush | mm | 800 |
5 | Source of power | V | 48V Lithium battery |
6 | Diving power | W | 1800 |
7 | Work power(motor) | W | 600+500+80*4+50 |
8 | Turning Radius | mm | 1200 |
9 | Side brush diameter | mm | 500 |
10 | Vacuum Power | W | 500 |
11 | Dustbin Capacity | L | 180 |
12 | Filtering area | M2 | 5 |
13 | Sweep Speed | km/h | 7 |
14 | Max running speed | Km/h | 9.8 |
15 | Cubage of water tank | L | 50 |
16 | Weight | kg | 900 |
17 | Dimension(L/W/H) | M | 2.15x1.85x2.15 |
